Cuplock Standard in Scaffolding Cuplock System

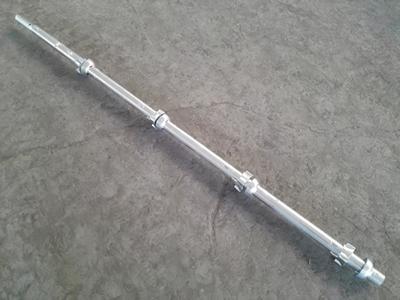

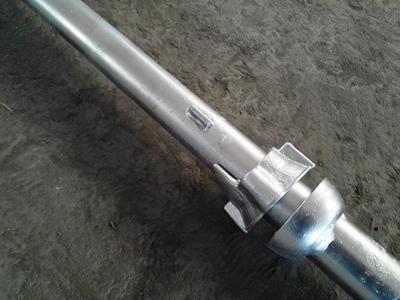

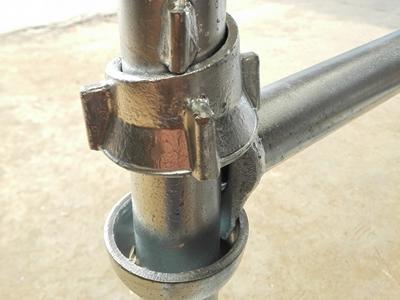

The cuplock standard features two top and bottom cups at an interval of 0.5m. These systems are quickly and easily assembled and disassembled and offer excellent stability. The cuplock standard provides vertical support for the entire scaffold cuplock system. The vertical pole is hot-dip galvanized.
We generally use Q235 steel or Q345 steel. Q235 is cheaper than Q345, making it an economic choice and widely applied. But the yield strength of Q345 is greater than Q235. So customers tend to choose Q345 if they have higher material requirements.
|Item No.||Description||Weight (KGS)||Weight (LBS)|
|CV910||Vertical with spigot 9'10"/3.0m||16.80||37.00|
|CV82||Vertical with spigot 8'2"/2.5m||14.04||30.93|
|CV66||Vertical with spigot 6'6"/2.0m||11.41||25.13|
|CV411||Vertical with spigot 4'11"/1.5m||8.70||19.16|
|CV33||Vertical with spigot 3'3"/1.0m||6.02||13.26|
|CV18||Vertical with spigot 1'8"/0.5m||3.32||7.31|
